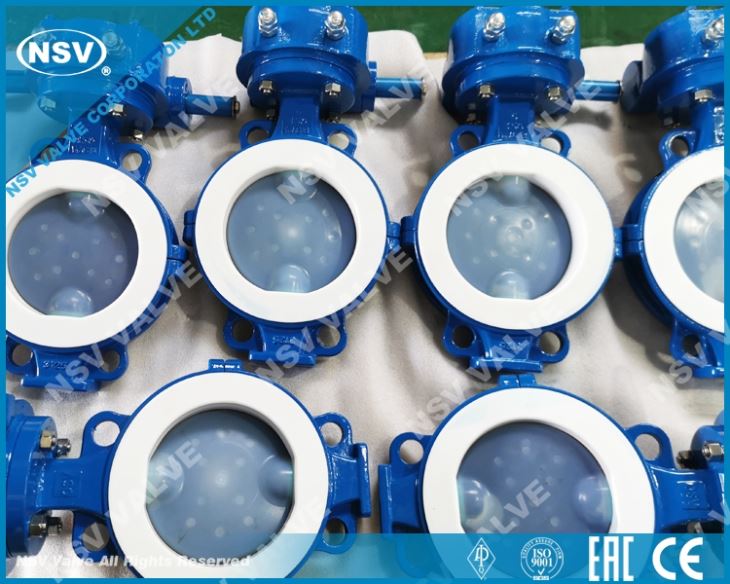

PTFE Lined Carbon Steel Butterfly Valve

NSV Valve Corporation is one of the most reliable manufacturers and suppliers of ptfe lined carbon steel butterfly valve in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to buy advanced ptfe lined carbon steel butterfly valve made in China here from our factory.

Product details

As this PTFE lined carbon steel butterfly valve(high performance butterfly valve) that designed with two pieces of body wafer type butterfly valve and a concentric disc and seat configuration to with whole pack age PTFE sealed structure, takes whole package PTFE painting skills for the body.

The painting thickness can reach up to 3~4mm ,which effectively avoids the direct interaction between the body and the medium and the medium's corrosion for the body. Different painting skills and materials of valve's disc are taken according to the customer's need, such as PTFE and nylon painting, stainless steel and bronze material for the body etc.this kind of valve are design to work with aggressive medium,such as Chemical industry,acids and high purity water etc.


 Applicable Standard
Design Standard:     API 609
Face to Face:   API 609
End Connection:    ASME B16.5
Inspection and Test: API 598

 Products Range
Size:    2" ~ 48" (DN50 ~ DN1200)
 Rating:   PN10,16,150PSI

 Body Materials:     Carbon Steel(216-WCB)+PTFE

Disc material:   Carbon Steel(216-WCB)+PFA
 Seat:    PTFE
 Operation:  Gear box


 Design Features
Absolutely tight sealing with flow in either direction

The valve body and disc are accurately machined which results in low operating torque and long service life and reliability

PTFE liner seated prevents corrosion and guarantees long service life

Can be disassembled, material specific recycling possible

Can be installed at the end of pipe for lugged type butterfly valve

 STRUCTURAL FEATURES

FAQ

1.Q:Does “NSV” valves have supply to any value end user?

  A:Yes,,it just like PETROKIMIA GRESIK in Indonesia, BP Iraq,ESFAHAN MOBARAKEH STEEL In Iran etc.

2. Q: I want to be registered as your agency.?

A: Defined inspection and manager’s approval shall be required for being registered as the company’s agency. For specific application method, please consult with sales team. If you are registered as the company’s agency, “Agency Certificate” will be issued.

3. Q:Are you manufacturer or trading company?

  A: We’re manufacturer,but our factory name is not named NSV due to we’re professional in promotion NSV brand with best service,and also have sold to many end user success.

4. Q:Do you have any valve in stock?

   A:There have a lot of GGC valves(2”&within) in stock,and that can delivery within one week.

5. Q: What kinds of valves do you manufacture?

A: We usually manufacture valves made of various materials such as cast Iron/ carbon steel,stainless steel,Alloy steel and industrial valves such as ball, gate, globe, check, bellows seal and ETC. For detail information, please refer to " Download>E-Catalog” of homepage.
