Pneumatic Forged Alloy 20 Ball Valve

NSV Pneumatic Forged Alloy 20 Ball Valve

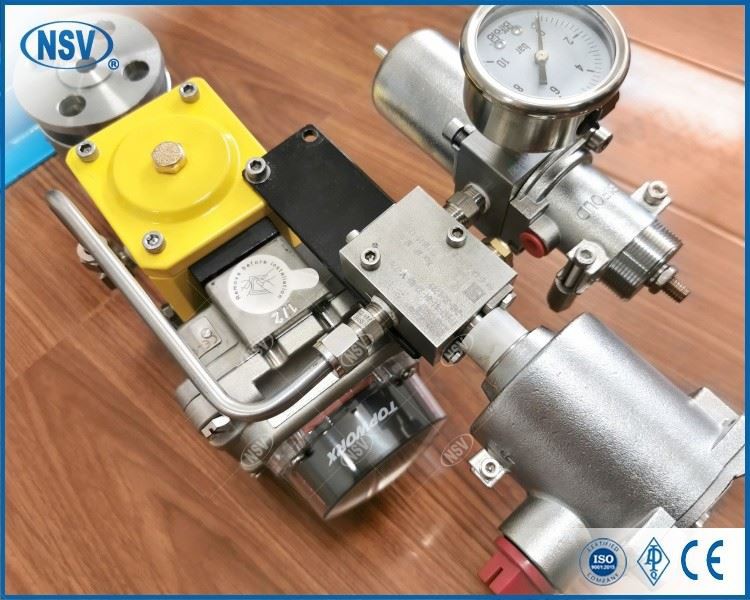

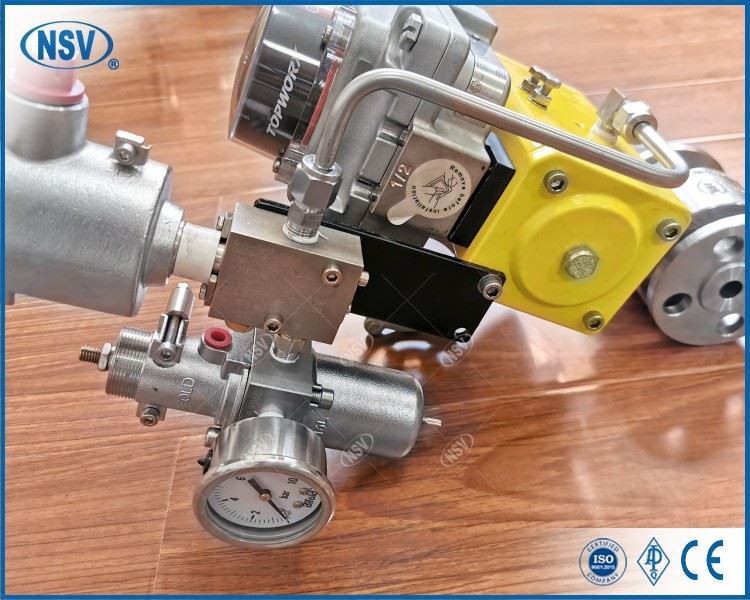

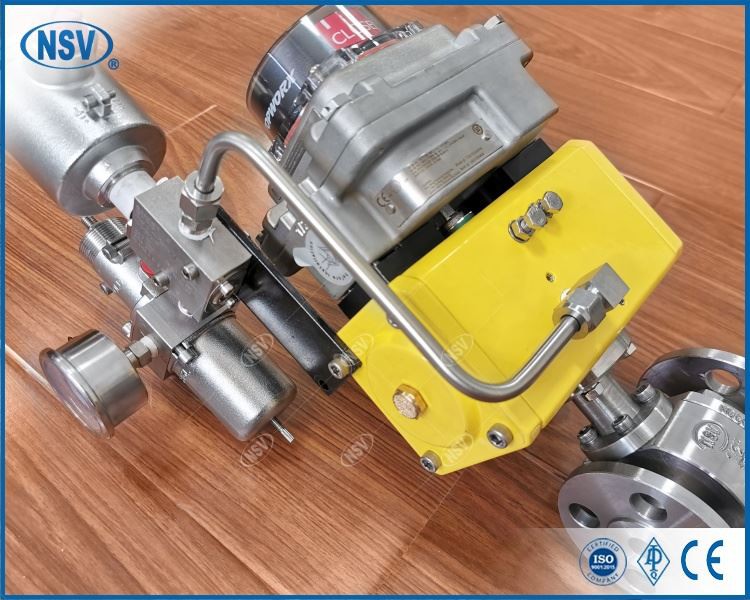

The NSV pneumatic forged ball valve features a fully forged body and trim constructed entirely from Alloy 20 (UNS N08020), engineered for demanding corrosive services in chemical processing.

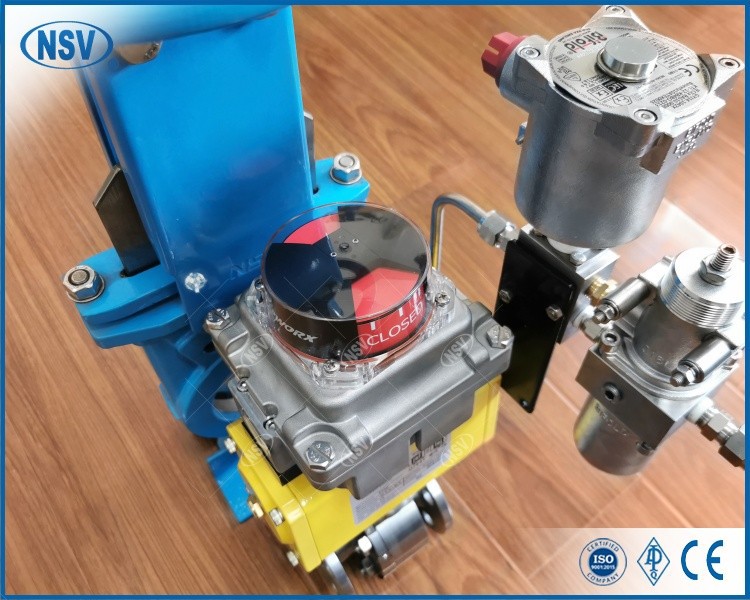

Equipped with a TOPWORX pneumatic actuator featuring NAMUR interface and mechanical limit switches for reliable automated control.

Fire-safe design compliant with API 607 utilizes a dual-seal system with RPTFE primary seat and metal-to-metal backup.

Integrated position indicator and supply pressure gauge enable local status verification.

Key Features

Body material: ASTM A182 F20 forged alloy.

Ball and stem: ASTM A182 F20, precision machined.

Seat options: RPTFE or graphite-reinforced PTFE.

Size range: 1"-2"

Pressure class: ASME Class 150 to 600.

Operating temperature : -29℃ to +200℃.

End connections: ANSI B16.5 RF flanged or NPT threaded.

Actuator air supply: 4 to 8 bar.

Design follows API 6D, ISO 17292, and ASME B16.34.

Testing is performed per API 598.

Certifications include CE, PED 2014/68/EU, and ISO 9001.

Typical Applications

Typical application is control of concentrated sulfuric acid, phosphoric acid, and other highly corrosive process media in chemical plants.
