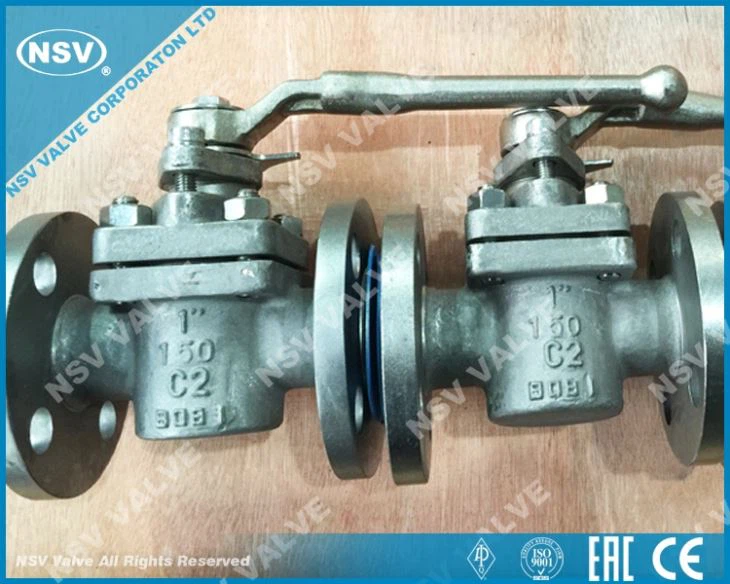

Titanium C2 Plug Valve

NSV Titanium Plug valves are valves with cylindrical or conically tapered "plugs" which can be rotated inside the valve body to control flow through the valve,the PTFE sleeve plug valve incorporate state-of-the-art PTFE fluorocarbon seat design. This material Oxidized thin films have good stability and self-passivation ability in strong corrosive environment, which can resist strong corrosion in many harsh conditions.

• Applicable Standard
  Design Standard: API 599,6D, ASME B16.34
  Face to Face: ASME B16.10
  End Flange: ASME B16.5
  Butt welding Ends: ASME B16.25
  Inspection and Test: API 598, API 6D

• Products Range
  Size: 1/2" ~14" (DN15 ~ DN350)
  Rating: 150lb ~ 900LB

Body Material: Titanium C2,C3,C5,C6,C12(B367 Gr.C2,C3,C5,C6,C12,C7)
Plug Material: Titanium C2,C3,C5,C6,C12(B367 Gr.C2,C3,C5,C6,C12,C7)
Sleeve(seat) Material: PTFE
Operation: Lever, Gear, Electric, Pneumatic, Hydraulic

• Design Features
  Reduced port or Full port
  Rugged,Heavy-Duty Body
  Large port opening

      Non-Lubricated

STRUCTURAL FEATURES

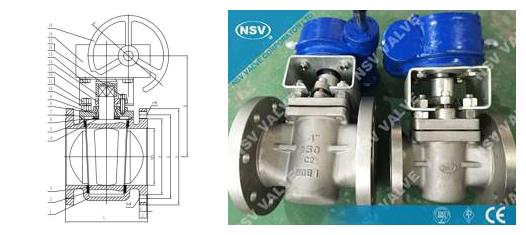

1.Construction of Sleeved Plug Valves

Basic structure is plug, sleeve,body. Sleeve is inserted and encaged inside the body. Tapered plug is inserted onto the sleeve.The sleeve is acting as a soft seat.And completely surrounds plug creating areal sealing surfaces.Also not permitting any dead space in the flow path. Plug is rotating 90 degree. When it is aligned with the body port, flow is open. When the plug is rotated so that plug port is perpendicular to the body port the flow is blocked.The media kept in the plug while at closed position, will be contained in the plug port only,and when the valve is open again,the flow will flush the out. And no remains.

Plug is tapered. Monolithic design.Wedge action. Lowering 1 mm will result in side pressure vectors.Adjustable. Solid not unstable as pressure dependent.Materials can be upgraded for the plug alone to be better resistive than the body corrosion rate.

Sleeve is also tapered to accepted the configure of plug. They are snuggly fit into the void space created by upper, lower and metal port lips.The PTFE materials are rigid enough, resilient enough, elastic enough. Corrosion resistant.Temperature, pressure.For highly radioactive environment, higher temperatures,several different materials are used.

2.Zero Leakage

The zero leakage stem sealing is achieved by the Threefold Stem Sealing System.
The primary seal is provided by the sleeve. The sealing is so tight that no leakage can be observed even without a valve cover. The secondary and the tertiary seal (top seal package) are provided by a delta ring and a diaphragm made of RTFE ( Rein forced Teflon). The sealing is also so tight that no leakage can be observed even with out a sleeve.

FAQ

1. Q:Do you have any valve in stock?

A:There have a lot of GGC valves(2”&within) in stock,and that can delivery within one week.

2. Q:Do you have customized valve?

A:Yes,we can supply customized valves.

3. Q: What kinds of valves do you manufacture?

A: We usually manufacture valves made of various materials such as cast Iron/ carbon steel,stainless steel,Alloy steel and industrial valves such as ball, gate, globe, check, bellows seal and ETC. For detail information, please refer to "Download>E-Catalog” of homepage.

4. Q:What's the packing for shipping?

A:Its carton for small valves(sample) and plywood case(don’t to fumigate).

5. Q: How about delivery schedule?

A: Delivery schedule depends on product type. Therefore, please consult with sales team for specific delivery schedule when you inquire quote. The company is making an effort to keep the delivery schedule, which is the promise with customer. The company will improve your satisfaction degree by delivering the necessary product as soon as possible.
