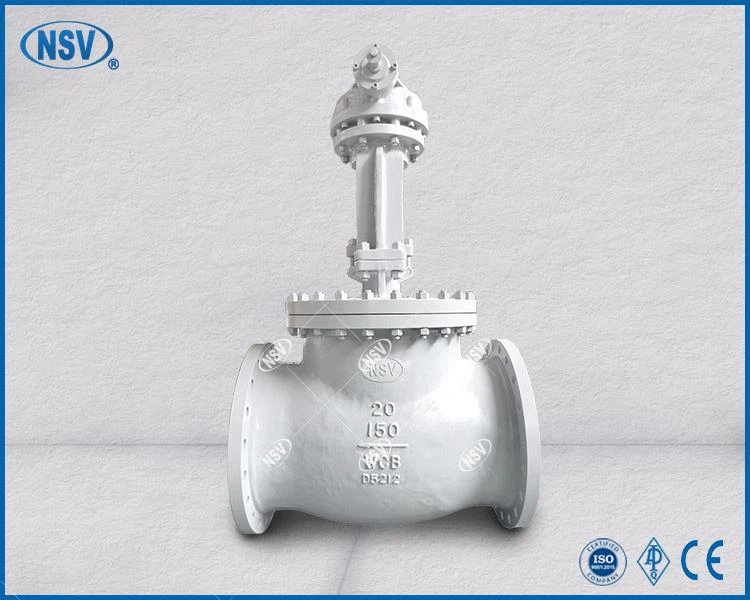

WCB Cast Steel Globe Valve

NSV WCB Cast Steel Globe Valve

This globe valve features an ASTM A216 WCB cast steel body, delivering reliable performance in general and moderate temperature service. The bolted bonnet and OS&Y design allow for easy maintenance and clear visual indication of valve position. Stellite hardfaced seating surfaces provide excellent wear resistance and ensure tight shutoff, even under frequent operation or thermal cycling.

Key Features

Body: ASTM A216 Gr. WCB (LCB and other carbon steel options available)

Seat: Stellite-faced on disc and seat ring

Size Range: 2"-24"

Pressure Class: 150#-2500#

Temp. Range:-29℃  to  +425℃

Type: Cast steel bolted bonnet globe valve, OS&Y

End Connection: Flanged (RF, ANSI B16.5 / B16.47), BW

Standards: ASME B16.34, BS 1873

Typical Applications

Steam, oil, gas, and water services in power generation, refining, chemical processing, and industrial plants requiring dependable shut-off, precise throttling control, and compatibility with standard carbon steel piping systems.

FAQ

1. Q:Do you have customized valve?

A:Yes,we can supply customized valves.

2. Q:What's the packing for shipping?

A:Its carton for small valves(sample) and plywood case(don't to fumigate).

3.Q: Do u provide sample,is it free or extra ?

A: Yes, we could offer the sample, due to its value,we can supply free sample that small value and you afford the freight,but also welcome visit our factory to inspect quality.

4. Q:How can I get your company catalog?

A: For your reference, basic catalogue is same as "Download>E-Catalog" of homepage. If you need printed material or request more specific data like PQ material, please contact sales team.
