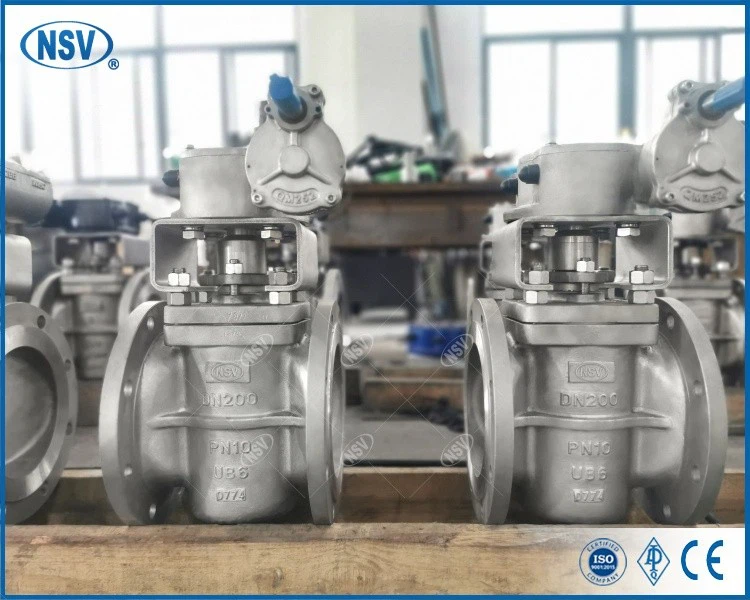

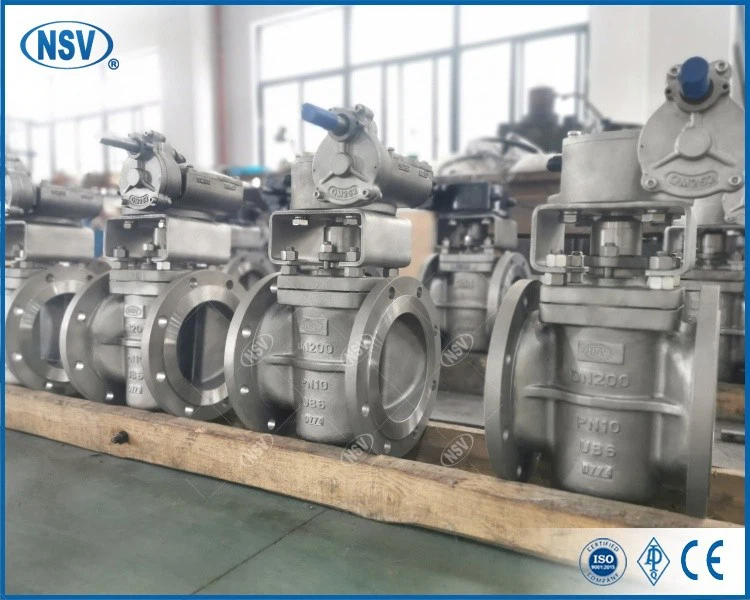

NSV Integral UB6 Plug Valve

NSV Integral UB6 Plug Valve

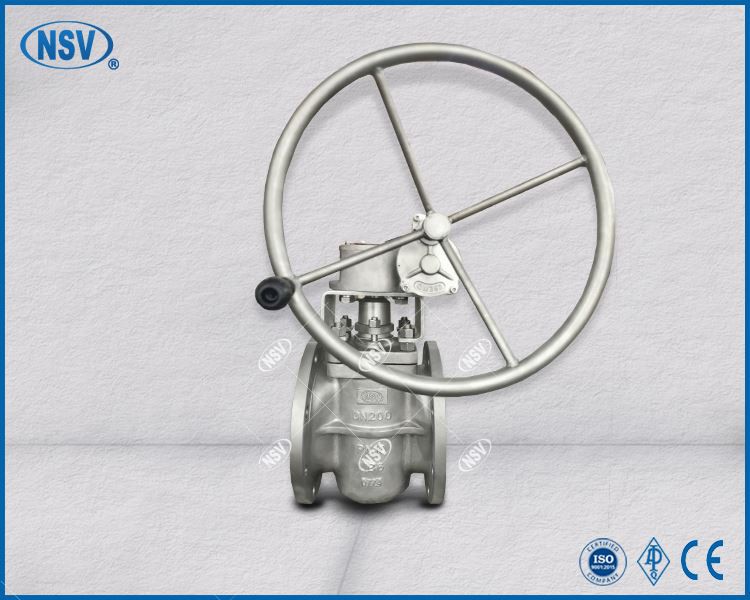

The NSV integral stainless steel plug valve with body, plug, stem and bushings all made of UB6 alloy. It features reduced bore flow, bubble tight shu off, low operating torque, and no internal dead zones. The integral stainless constr uction eliminates galvanic corrosion and metal contamination, making it suitable for corrosive and high-purity services. Flanged ends and large handwheel ensure reliable installation and smooth operation.

Key Specifications

Body & Trim: UB6

Size Range: 2" -16" (DN50-DN400)

Pressure Rating: 150#-600#

End Connection: RF Flange (ANSI B16.5)

Sealing: Dual adjustable graphite/PTFE packing glands (API 607 fire-safe)

Temp. Range: -29℃ to + 200℃

Standards: API 599, API 6D, ISO 17292, PED 2014/68/EU

Typical Applications

Hot concentrated H₂SO₄, seawater injection and desalination, FGD slurry lines, offshore systems, pharmaceutical and biotech fluid handling.
