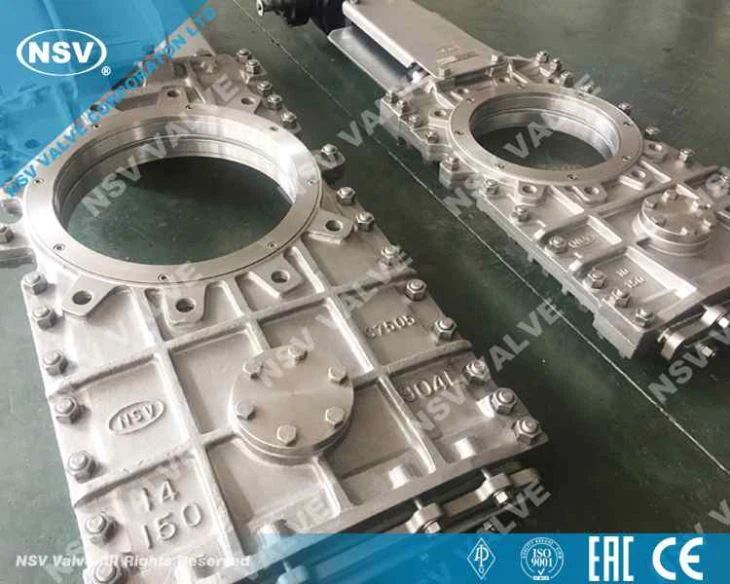

Hydraulic Through Conduit Industrial Knife Gate Valve

Over the years, we have been dedicated to the BB Forged Check Valve, Triple Eccentric Flange Butterfly Valve, PSB Check Valve business, and have won the trust and praise of users with advanced technology, excellent quality, and a win-win strategic cooperation policy. We have various excellent employees, responsible for product development, design, production and sales. At the same time, our products are manufactured in accordance with high quality standards and are compliant with advanced international standards. In the future, we will continue to uphold the high-efficiency and high-quality quality, and strive to achieve the top with the spirit of pioneering, innovative, truth-seeking and pragmatic dedication.

Product Details

NSV Through conduit knife gate valve is a wafer valve designed for media with high condistency.

The double seat design assures a non-dogging shut off on either normal or reverse flow.The valve is used in a wide range of demanding applications in industries such as:

Pulp & Pater

Wastewater treatment Plants

Power Plants

Chemical Plants

Applicable Standard
Design Standard: MSS SP-81, ANSI, API, ISO, DIN, EN, JIS etc.
End Flange: ASME B16.5, ASME B16.47, DIN2533

Products Range
Size: 2" to 48"(DN50 to DN1200,larger diameters on request)

Flange Connection

EN1092 PN10,PN16,PN25
ANSI B16.5 (class 125,150)

Materials
Body Materials: Ductile Iron, Stainless Steel, Duplex and Special Alloys
Knife Gate: Stainless Steel, Duplex and Special Alloys

Seat: Resilient(EPDM,NBR,PTFE) or Metal Seat
Operation: Pneumatic actuator.

Precautionary Measures

Valve Position

The valve can be assembled in any position,however we recommend suitable position as bellow:

Knife gate valve assembly way

The valve is unidirectional is must be installed with the pressure which push the knife on the gasket.The flow direction is user responsility.Please assemble the valve following the arrow on the body(hydraulics applications).

Valve Handing

Before assembling please handle the valve with care.

Pipe installation

Assembling the valve must be installed between flanges

Valve support

When the valves are operated with heavy actuator in horizontal or tilting position,the actuator must be supported by means of the retaining plate supplied

Working Pressure/temperature

Max.working pressure:

DN50~250: 10Bar DN300~450: 7Bar

DN500~600: 4Bar DN700~900: 2Bar

DN1000~1200: 1Bar

Max.working temperature:

EPDM 110 Deg C Viton 220 DegC

NBR 110 Deg C PTFE 150 DegC
