Pneumatic Flange Type Triple/Three Eccentric Butterfly Valve

Our brand has a certain popularity and service reputation at home and abroad. Our Cast Trunnion Ball Valve, Cast Floating Ball Valve, Diaphragm Valves are sold at home and all over the world and have been recognized and praised by our customers. Our company is people-oriented, sophisticated equipment, rigorous craftsmanship, vigorous, and strides forward Our pursuit is the corporate culture with ethics and humanity as its core values. We sincerely welcome the customers from all over the world to contact us for anything you need!

Product details

NSV Triple Eccentric Flange Butterfly Valve are used to open and close(seal type) or adjust the medium flow in pipes. It is widely used in metallurgy,electric power, petrochemical, water supply and drainage, municipal construction and other industrial pipelines with medium temperature ≤425℃.

Design Features
Triple eccentric design
Metal to metal,Rubber,PTFE seated
Bi-directional service
Flange Connection

STRUCTURAL FEATURES

1. Simple structure, small sizes, light weight and low installation dimensions. According to the types of body connection, they are basically classified to wafer type(including lug wafer type), flanged and welded.

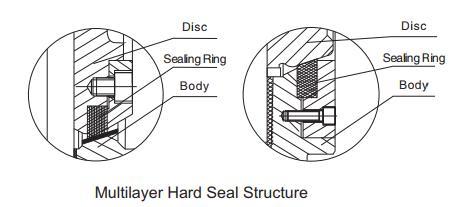

2.Multilayer Hard Seal Structure(See fig．right)
Multilayer hard seal structure is applicable. double and triple eccentric butterfly valves, pressure rating≤CLASS600．And triple eccentric butterfly valve can maintain bi-directional Ieak—tightness.Multilayer sealing ring is composite of stainless steel and nonmetal material. The nonmetal material can be flexible graphite。PTFE or non asbestos material etc. according to the actual working conditions.

3. Low driving moment,easy and quick operation

DO’S & DON’TS BEFORE INSTALL ON PIPELINE

1. These valves are not to be used for End of Line Service.

2. Wear all necessary protective equipment for conducting the work.

3. Never remove or maintain a valve or joint unless the line has been fully drained and de-pressurized.

4. Ensure that the valves are used within the pressure temperature service conditions as per ASME B16.34.Also refer nameplate for pressure temperature limites.In case of additional assistance consult with ALL.

5. Valve handwheels are designed only for operation.The handwheel must not be used for handling the valve.

FAQ

1. Q:Does your company have any agent/distributor with the exception of China?

A: At present,we have agent in Indonesia,Singapore,Canada,Mexico,Iraq,and welcome contact us if you would like to join us.

2. Q:Does “NSV” valves have supply to any value end user?

A:Yes,it just like PETROKIMIA GRESIK in Indonesia, BP Iraq,ESFAHAN MOBARAKEH STEEL In Iran etc.

3. Q:Are you manufacturer or trading company?

A: We’re manufacturer,but our factory name is not named NSV due to we’re professional in promotion NSV brand with best service,and also have sold to many end user success.

The quality of our Pneumatic Flange Type Triple/Three Eccentric Butterfly Valve is guaranteed to meet the standards so that each product is shipped and used without harming the environment where we live together. We also warmly welcome customers to visit our company and purchase our solutions. We look forward to providing excellent service to our customers abroad with new product structure and excellent product quality.
