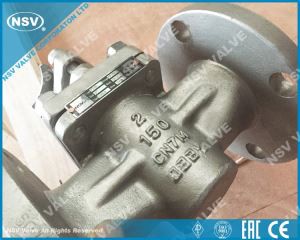

Stainless Steel CF8m/Ss316 Flanged Lubricated/Non-Lubricated Plug Valve (X41)

Through a long-term development, our PSB Forged Check Valve, BB Forged Gate Valve, M35-1 Ball Valve has being the best-selling in domestic and abroad obtained numerous of merchants'approvals and faith. We are familiar with consumer needs and market trends. The company serves customers with a top sales team, a mature and fast response system, and an advanced network management system to achieve internal direct, concise and multi-dimensional communication. Our design always starts from the details to meet the requirements of every detail in use. In the design, we try to think more, understand more and do more.

Product details

NSV Lubricated Plug valves Designed for Crude oil, Oil, Natural gas handling and transmission lines. Line sealing is achieved basically by metal to metal contact between body and plug with assistance of sealant injected in between body and plug, which serves both sealing and lubricating during operation.

Considered a high maintenance plug valve, they are often used in applications that have infrequent operations. Lubricated plug valves perform well in processes that utilize fluids which carry mildly abrasive particles such as dirty upstream applications, gas pipeline systems that need bypass valves, and as blow-down valves on valve stations and kicker valves.

Applicable Standard
Design Standard: API 599,6D, ASME B16.34
Face to Face: ASME B16.10
End Flange: ASME B16.5
Butt welding Ends: ASME B16.25
Inspection and Test: API 598, API 6D

Products Range
Size: 1/2" ~4" (DN15 ~ DN100)
Rating: 150lb ~ 600LB

Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel
Plug Material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel
Seat Material: Metal
Operation : Lever, Gear, Electric, Pneumatic, Hydraulic

Design Features
Reduced port or Full port
Large port opening

Pressure Balance Lubricates

STRUCTURAL FEATURES

1.Construction of Lubricated Plug Valves
As the name suggests, a lubricated valve uses a lubricant usually made up of a base oil and viscosity improver (like amorphous or fumed silica) that is injected under pressure between the plug face and body seat to reduce friction and seal ports.

2. Hard Surfaced Plug Valves
High Temperature and Abrasive services: For high temperature and abrasive services, NSV plug valve can be supplied with plug taper and body seat hard surfaced with nickel or cobalt base alloys. These materials provides a coating at elevated temperatures. With additional hard surfacing in high erosion areas, hard surfaced valve provides excellent resistance to abrasion in coal, limestone, iron core, copper ore and other water carried slurries. For severe services, hard surfacing extends valve life and improves valve performance significantly.
