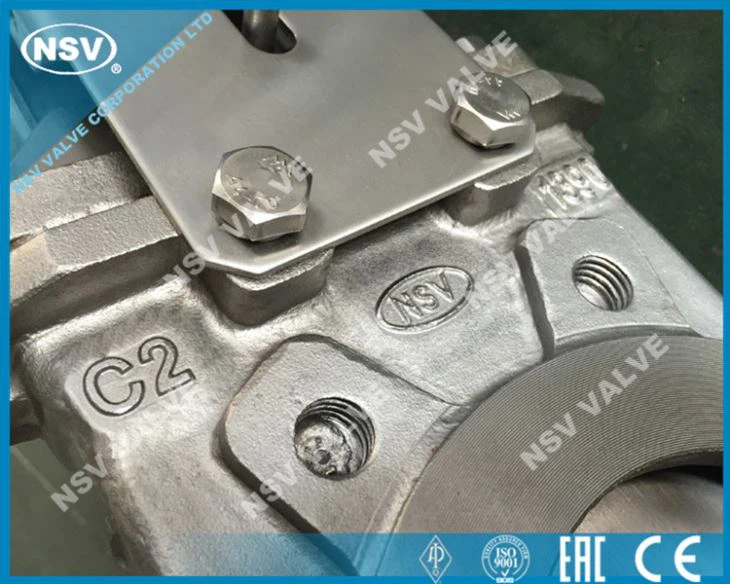

Unidirectional Knife Gate Valve Replaceable Seat

We can offer you virtually every variety of merchandise associated to our item range for PSB Cast Gate Valve, SS904L Butterfly Valve, BB Forged Check Valve. We adhere to the principles of professional and practical product design, pursue excellence, keep making progress, and wholeheartedly provide users in various industries with high-quality and low-cost products and perfect system services. We are able to fully meet the customer needs, whether sent in China or all over the world. Thanks to the support and trust from all customers, and effort of our employees, now we have established a complete sales network worldwide. And global customers can enjoy on-time service as they always need. We will continue to do our best effort to service and satisfy you!

Product Details

NSV Unidirectional Knife Gate Valve design One piece cast body with guides to support gate and seat wedges. Provides high flow rates with low pressure drop and include various seat and packing materials available. Face to face dimension in accordance with NSV standard. An arrow is marked on the body indicating the flow direction. This knife gate valve is suitable for liquids that contain a maximum of 5% suspended solids..Designed for applications such as:

Paper Industry, Mining, Silo emptying, Chemical plants, Bumping Food, Industry Sewage treatment.

Applicable Standard
Design Standard: MSS SP-81, ANSI, API, ISO, DIN, EN, JIS etc.
End Flange: ASME B16.5, ASME B16.47, DIN2533

Products Range
Size: 2" to 48"(DN50 to DN1200,larger diameters on request)

Flange Connection

EN1092 PN10,PN16,PN25
ANSI B16.5 (class 125,150)

Materials
Body Materials: Ductile Iron, Cast Steel, Stainless Steel, Duplex and Special Alloys
Knife Gate: Stainless Steel, Duplex and Special Alloys

Seat: Soft(EPDM,NBR,PTFE) or Metal Seat
Operation: Handwheel, Gear, Pneumatic, Hydrau-Pneumatic and Electric etc.

Design Features
1. The scientific back seal packing box design makes the bak seal safe, effective and durable.
2. The triangle supporter ensures necessary mechanical properties.
3. V shape wedge can serve as control valve.
4. The guide block on the valve body enables the wedge to move correctly and extrusion block provides effective sealing for the wedge.
5. The design of valve body reinforcing rib can enhance the body strength.

FAQ

1. Q:What’s the packing for shipping?

A:Its carton for small valves(sample) and plywood case(don’t to fumigate).

2. Q:Does “NSV” valves have supply to any value end user?

A:Yes,it just like PETROKIMIA GRESIK in Indonesia, BP Iraq,ESFAHAN MOBARAKEH STEEL In Iran etc.

3. Q: What’s the valves warranty?
A: Our valves warranty period should be 18 months from the date of shipment or 12 months after installation, whichever occurs first.

4. Q: What’s your payment terms?

A: As our company’s policy, we normally have bellow 3 payment terms,it also can negotiation both parties before confirm order.
1) 100% T/T or West Union in advance that order value within $2,000.00USD.

2)30% T/T advance+70% balance after the shipment for the order value above $2,000.00USD.

3)L/C at sight for the order value above $50,000.00USD
