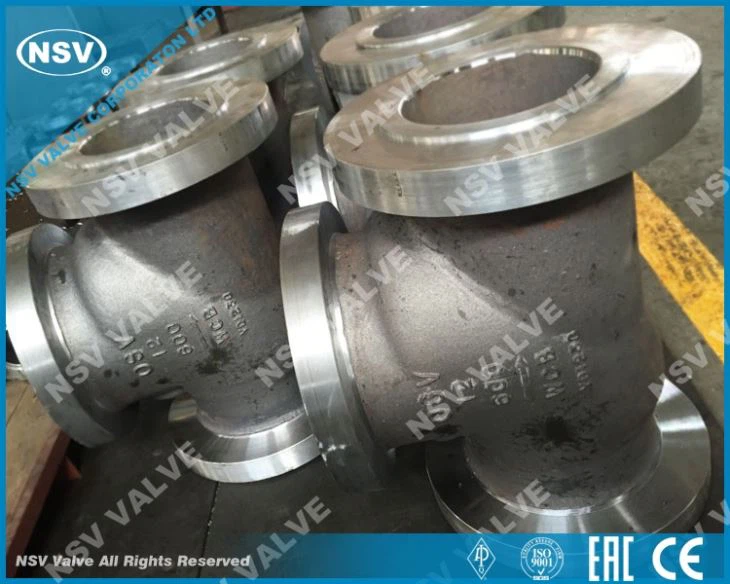

API 6D Check Valve

  NSV API6D Full Port Swing check valves, like all check valves, are used to prevent back flow in the line. That’s full port design due to some pipeline need pigging,and BS1868 standard check valve is not suitable for it. swing check valves are a more traditional variety. The disc of a swing check valve is secured to the body of the valve by a trunnion and hinge arm, without the aid of a spring.

• Applicable Standard
   Design Standard: ASME B16.34, API 6D,
   Face to Face: ASME B16.10, API 6D, EN 558
   End Flange: ASME B16.5, ASME B16.47
   Butt welding Ends: ASME B16.25
   Inspection and Test: API 598


• Products Range
   Size: 2" ~ 24" (DN50 ~ DN600)
   Rating: ANSI 150lb-1500lb
   Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
   Trim: Per API 600


• Design Features
   Full open design
   Bolted cover
   Swing type disc design
   Renewable or and welded seat
   Flanged or butt welding ends

STRUCTURAL FEATURES

◎ Body--Cover

Precision machined castings.
Exclusive: Disc shaft does not penetrate body.

◎ Body and Cover

Body and cover joint: Accurately machined,
fully-enclosed gasket.

◎Disc

Robust one-piece construction to withstand the severe shock of check valve service. Hardfaced with 13Cr, CoCr alloy, SS 316, or Monel, ground and lapped to a mirror finish. Sizes NPS 2–6 (DN 50–150) may have solid CA 15 (13Cr) disc. SS 316 disc with CoCr alloy facing also available.

APPLICATION

These valves can be found in the following applications:

• Gas and liquid pipelines
• Water and steam systems
• Cooling towers
• Water treatment
• Cryogenic applications
• Gas export facilities
• Product tank farms
• Gas storage caverns
• Mine dewatering

  Swing valves, because of their less controlled opening and closing mechanics, are used in less sensitive applications. They are most commonly employed in large-scale pipeline applications, such as liquid, gas, and steam, generally only in horizontal configurations. In articular, they’re often used in natural gas applications, as natural gas processing generally does not require as stringent pressure control as the oil and refining industry or in sewage and water treatment systems

FAQ

1. Q:How can I get your company catalog?

A: For your reference, basic catalogue is same as "Download>E-Catalog” of homepage. If you need printed material or request more specific data like PQ material, please contact sales team.

2. Q:Does your company have any agent/distributor with the exception of China?

  A: At present,we have agent in Indonesia,Singapore,Canada,Mexico,Iraq,and welcome contact us if you would like to join us.

3. Q:Does “NSV” valves have supply to any value end user?

  A:Yes,,it just like PETROKIMIA GRESIK in Indonesia, BP Iraq,ESFAHAN MOBARAKEH STEEL In Iran etc.

4. Q: I want to be registered as your agency?

A: Defined inspection and manager’s approval shall be required for being registered as the company’s agency. For specific application method, please consult with sales team. If you are registered as the company’s agency, “Agency Certificate” will be issued.

5. Q:Are you manufacturer or trading company?

  A: We’re manufacturer,but our factory name is not named NSV due to we’re professional in promotion NSV brand with best service,and also have sold to many end user success.
