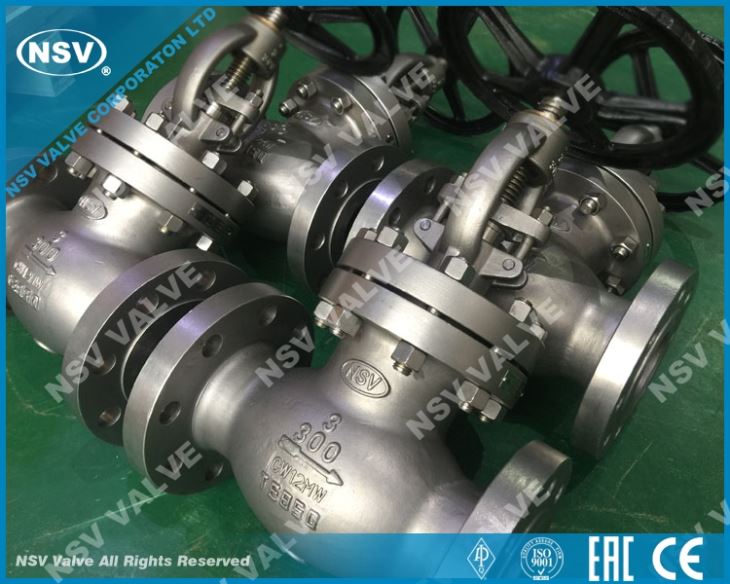

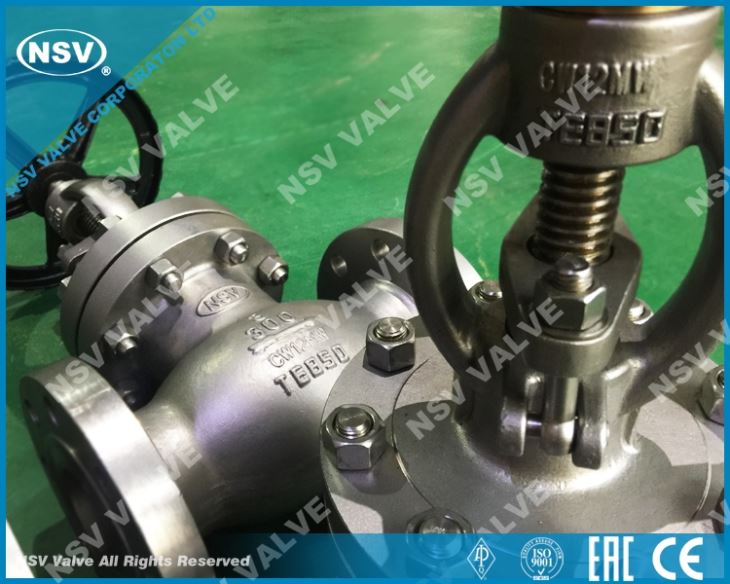

A494 CW12MW Globe Valve

NSV Valve Corporation is one of the most reliable manufacturers and suppliers of a494 cw12mw globe valve in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to buy advanced a494 cw12mw globe valve made in China here from our factory.

  NSV Hastelloy C276(A494 CW12MW) Globe valves are widely used for processes handling oxidizing acid,formic acid,acetic anhydricde and seawater,also for chemical processes handling fluoride,that’s with superior resistance under oxidizing environment,such as wet chlorine gas and chlorine dioxide; also resistance to organic and chloride such as acetic acid and seawater.

• Applicable Standard

      Design Standard: BS 1873, ASME B16.34
      Face to Face: ASME B16.10, API 6D, EN 558, DIN 3202
      End Flange: ASME B16.5, ASME B16.47, DIN2501, DIN2533
      Butt welding Ends: ASME B16.25, DIN3239
      Inspection and Test: API 598, DIN3230


• Products Range
  Size:  2" ~ 18"(DN50 ~ DN450)
  Rating: ANSI 150lb ~ 300lb
  Body Materials: Hastelloy C276(A494 CW12MW)
  Trim: Hastelloy C276(A494 CW12MW)

      Operation:  Handwheel, Gear, Electric, Pneumatic, Hydraulic


• Design Features
  Straight pattern body design
  OS&Y, outside screw and yoke
  Tapered, globe, or plug disc
  Integral Seat

FAQ

1. Q:Do you have any valve in stock?

   A:There have a lot of GGC valves(2”&within) in stock,and that can delivery within one week.

2. Q:Do you have customized valve?

A:Yes,we can supply customized valves.

3. Q: What kinds of valves do you manufacture?

A: We usually manufacture valves made of various materials such as cast Iron/ carbon steel,stainless steel,Alloy steel and industrial valves such as ball, gate, globe, check, bellows seal and ETC. For detail information, please refer to " Download>E-Catalog” of homepage.

4. Q:What's the packing for shipping?

  A:Its carton for small valves(sample) and plywood case(don’t to fumigate).

5.Q: How about delivery schedule?

A: Delivery schedule depends on product type. Therefore, please consult with sales team for specific delivery schedule when you inquire quote. The company is making an effort to keep the delivery schedule, which is the promise with customer. The company will improve your satisfaction degree by delivering the necessary product as soon as possible.
