CW6M Sleeve Plug Valve

  NSV A494 CW6M Sleeve Plug valves are valves with cylindrical or conically tapered "plugs" which can be rotated inside the valve body to control flow through the valve,This material of plug valve application for processes handling oxidizing acid,formic acid,acetic anhydricde and seawater,also for chemical processes handling fluoride,that’s with superior resistance under oxidizing environment,such as wet chlorine gas and chlorine dioxide; also resistance to organic and chloride such as acetic acid and seawater.

• Applicable Standard

      Design Standard:     API 599,6D, ASME B16.34
      Face to Face:          ASME B16.10
      End Flange:             ASME B16.5
      Butt welding Ends:    ASME B16.25
      Inspection and Test: API 598, API 6D

• Products Range
  Size:                1/2" ~14" (DN15 ~ DN350)
  Rating:             150lb ~ 900LB

Body Material: A494 CW6M

Plug Material: A494 CW6M
Sleeve(seat) Material: PTFE
Operation: Lever, Gear, Electric, Pneumatic, Hydraulic

• Design Features
  Reduced port or Full port
  Rugged,Heavy-Duty Body
  Large port opening

      Non-Lubricated

STRUCTURAL FEATURES

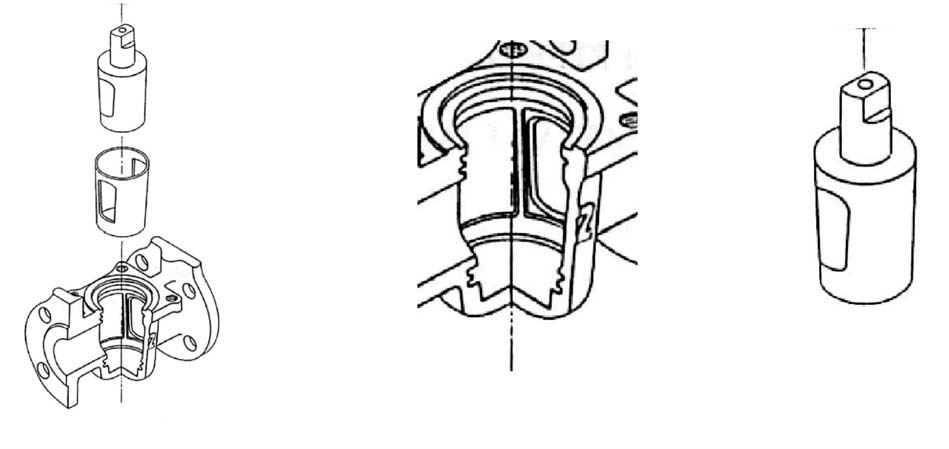

Construction of Sleeved Plug Valves

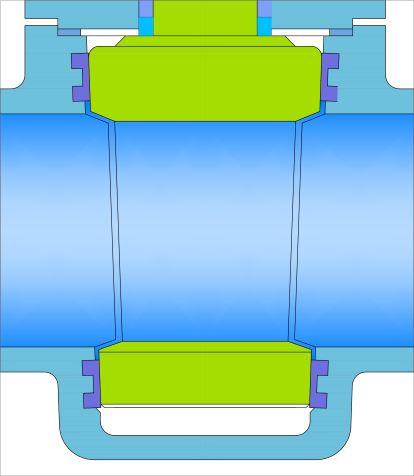

Basic structure is plug, sleeve,body. Sleeve is inserted and encaged inside the body. Tapered plug is inserted onto the sleeve.The sleeve is acting as a soft seat.And completely surrounds plug creating areal sealing surfaces.Also not permitting any dead space in the flow path. Plug is rotating 90 degree. When it is aligned with the body port, flow is open. When the plug is rotated so that plug port is perpendicular to the body port the flow is blocked.The media kept in the plug while at closed position, will be contained in the plug port only,and when the valve is open again,the flow will flush the out. And no remains.

PTFE is an plastic material, even though they are high grade engineering material. All plastics are subject to cold flow.; at higher temperature volume increase,escape to the low pressure area and don’t get back to its original position even after removal of temperature, pressure. But, if they get confined , they would not cold flow. Upper boundary and lower boundary, and 360 port lips.Recessed wall is acting as absorption of inflated volume of PTFE when volume is increased due to temperature.

Plug is tapered. Monolithic design.Wedge action. Lowering 1 mm will result in side pressure vectors.Adjustable. Solid not unstable as pressure dependent.Materials can be upgraded for the plug alone to be better resistive than the body corrosion rate.

Sleeve is also tapered to accepted the configure of plug. They are snuggly fit into the void space created by upper, lower and metal port lips.The PTFE materials are rigid enough, resilient enough, elastic enough. Corrosion resistant.Temperature, pressure.For highly radioactive environment, higher temperatures,several different materials are used.
